    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter

    Ask Lasest Price
    Brand Name : Huawei
    Model Number : SUN2000-5KTL-L1
    Supply Ability : 100 Piece/Pieces per Week
    Price : $789.00/pieces 1-4 pieces
    • Product Details
    • Company Profile

    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter

    Product Description
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter

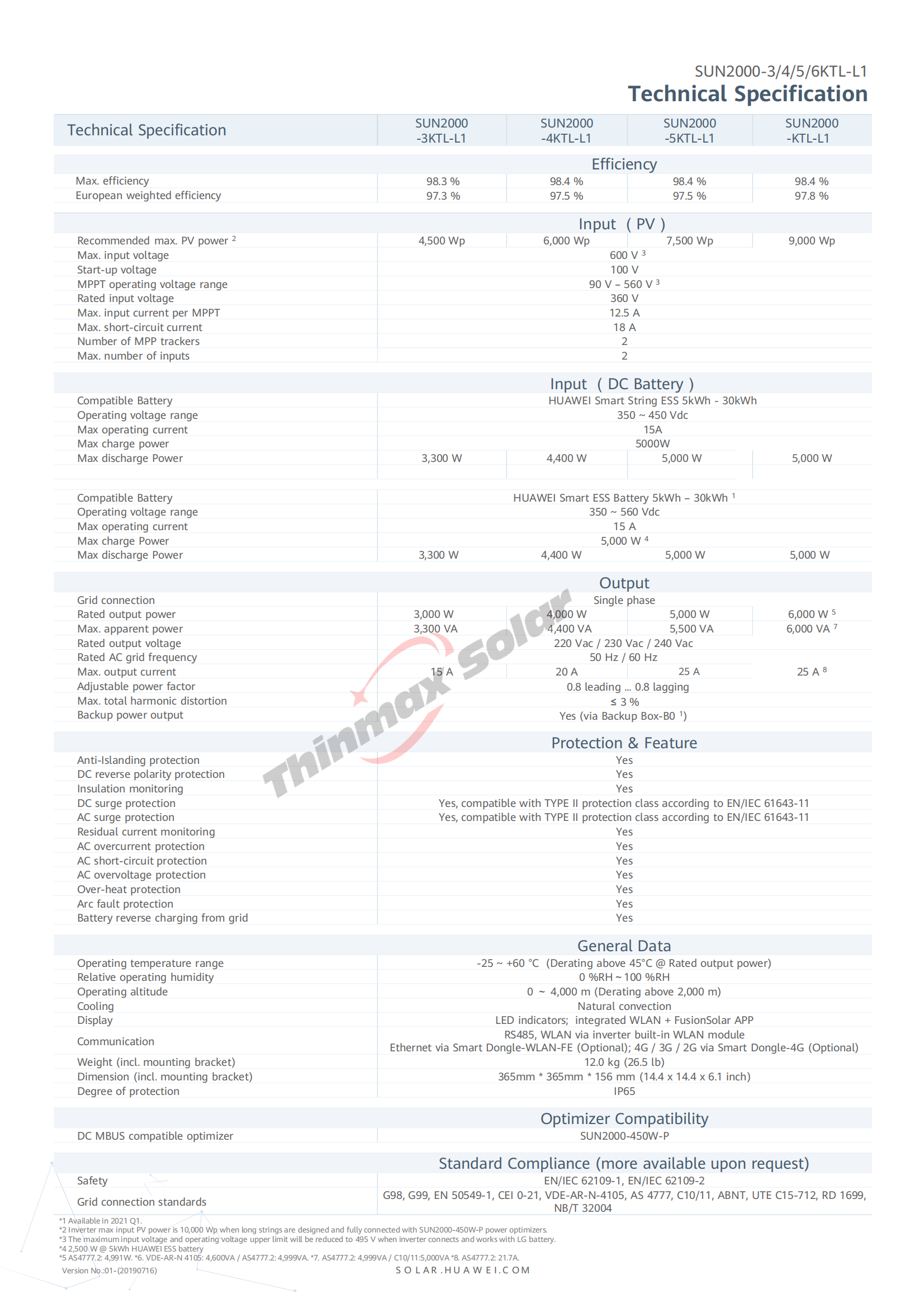

    Specification
    Efficiency
    Maximum efficiency
    98.3 %
    98.4 %
    98.4 %
    98.4 %
    The input
    Recommended max. PV power 1
    4,500 Wp
    6,000Wp
    7,500 Wp
    9,000Wp
    Max. input voltage
    600 V 3
    Start-up voltage
    100 V
    MPPT operating voltage range
    360 V
    Max. input current per MPPT
    12.5 A
    Max. short-circuit current
    18 A
    Number of MPP trackers
    2
    Max. number of inputs
    2
    Input (DC Battery)
    Compatible Battery
    HUAWEI Smart ESS Battery 5kWh – 30kWh 1
    Operating voltage range
    350 ~ 560 Vdc
    Max operating current
    15 A
    Max charge power
    5,000 W
    Max discharge Power
    3,300 W
    4,400 W
    5,000 W
    5,000 W
    The output
    Grid connection
    Single phase
    Rated output
    3,000 W
    4,000W
    4,991 W
    6,000W
    Maximum apparent power
    3,300 VA
    4,400VA
    4,999 VA
    6,000VA
    Rated output voltage
    220 Vac / 230 Vac / 240 Vac
    Maximum active power
    5,000W
    6,000W
    8,000W
    10,000W
    Output voltage frequency
    50HZ/60HZ
    Maximum output current
    15 A
    20 A
    21.7 A
    27.3 A
    Adjustable power facto
    0.8 leading ... 0.8 lagging
    Max. total harmonic distortion
    <3%
    Backup power output
    Yes (via Backup Box-5000 1)
    Features & Protections
    Anti-Islanding protection
    Yes
    DC reverse polarity protection
    Yes
    Insulation monitoring
    Yes
    DC surge protection
    Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
    AC surge protection
    Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
    Residual current monitoring
    Yes
    AC overcurrent protection
    Yes
    AC short-circuit protection
    Yes

    AC overvoltage protection
    Yes
    Over-heat protection
    Yes
    Arc fault protection
    Yes
    Battery reverse charging from grid
    Yes
    Battery reverse charging from grid
    Yes
    Nighttime Power Consumption
    Yes
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    Packing & Delivery
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
    Company Profile
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    With more than 10 years experience of dealing with solar system. Thinmax provides high quality pre-sale and after-sale service for our customers. We also have factory and professional technicians so we can provide customized product services for customers too.
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
    FAQ
    Q1: What is the delivery time?
    A1: It's according to the model. We will ship the items within 3 days if the items in stock.

    Q2: What ways of payment do you accept.
    A2: We can accept LC, Paypal, Credit card, etc.

    Q3: Will you provide shipping sevice?
    A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

    Q3: What if we have problems after sale?
    A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

    Q5: What is the minimum quantity?
    A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

    Q6: Are the inverters original?
    A6: Yes. Of course. If it's not. We will return all money back to you.
