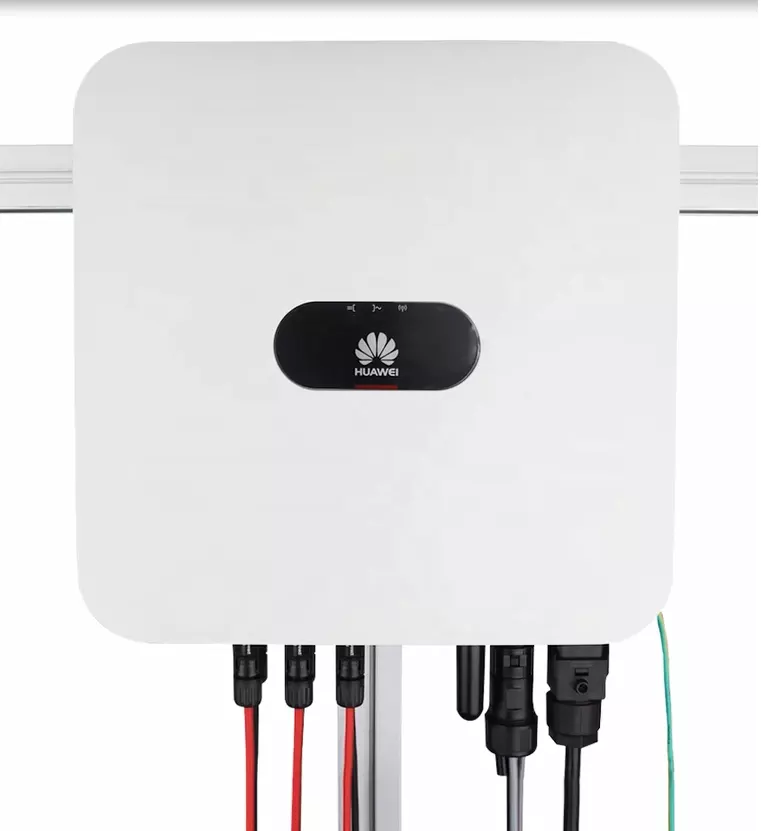

    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller

    Ask Lasest Price
    Brand Name : Huawei
    Model Number : SUN2000-6KTL-L1
    Supply Ability : 100 Piece/Pieces per Week
    Price : $820.00/pieces 1-9 pieces
    • Product Details
    • Company Profile

    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller

    Recommend Products
    Products Description
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    SUN2000-6KTL-L1
    6KW Single Phase
    Datasheet
    Model Name
    SUN2000 -6KTL-L1
    SUN2000-6KTL-L3
    Input DC
    Recommended max. PV power
    9000Wp
    7.5kW
    9kW
    Max. input voltage
    600V
    Start-up voltage
    200V
    MPPT voltage range
    90V-560V
    Max.current per MPPT
    12.5A
    MPPT number/Max. input strings number
    2
    Output (AC)
    Rated output power
    6kW
    5kW
    6kW
    Rated output voltage
    220 Vac / 230 Vac / 240 Vac
    Rated grid frequency
    50/60Hz
    Max. output current
    27.3A
    25 A
    27.3 A
    Power Factor
    0.8leading - 0.8laging
    THDi
    <3%
    Efficiency
    Max. efficiency
    98.4%
    EU efficiency
    97.8%
    Protection
    DC reverse-polarity protection
    Yes
    Short circuit protection
    Yes
    Output over current protection
    Yes
    Surge protection
    Yes
    Grid monitoring
    Yes
    Anti-islanding protection
    Yes
    Temperature protection
    Yes
    Integrated AFCI (DC arc-fault circuit protection)
    Yes
    Integrated DC switch
    Yes
    General Data
    Dimensions (W*H*D)
    365mm * 365mm * 156 mm
    Weight
    12 kg
    Topology
    Transformerless
    Self consumption
    <5.5W
    Operating temperature range
    -25 ~ +60°C
    Relative humidity
    0-100%RH
    Ingress protection
    IP65
    Cooling concept
    Natural convection
    Max. operation altitude
    4000m
    Safety Grid Connection Standards
    EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683,IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C
    15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699,P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution
    No.7,NRS 097-2-1, AS/NZS 4777.2, DEWA
    Features
    DC Connector
    Staubli MC4
    AC Connector
    Waterproof Connector + OT/DT Terminal
    Display
    LED Indicators, Integrated WLAN + FusionSolar APP
    Communication
    RS485, Optional: Wi-Fi, GPRS
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Company Profile
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Why Choose Us
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Product packaging
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    FAQ
    Huawei Hybrid inverter SUN2000-3/4/5/6KTL-L1 single phase solar inverter smart energy controller
    Q1: What is the delivery time?
    A1: It's according to the model. We will ship the items within 3 days if the items in stock.

    Q2: What ways of payment do you accept.
    A2: We can accept LC, Paypal, Credit card, etc.

    Q3: Will you provide shipping sevice?
    A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

    Q4: What if we have problems after sale?
    A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

    Q5: What is the minimum quantity?
    A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

    Q6: Are the inverters original?
    A6: Yes. Of course. If it's not. We will return all money back to you.
