2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter

    Buy cheap 2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter from wholesalers

    Buy cheap 2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter from wholesalers
    • Buy cheap 2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter from wholesalers
    • Buy cheap 2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter from wholesalers
    • Buy cheap 2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter from wholesalers
    • Buy cheap 2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter from wholesalers
    • Buy cheap 2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter from wholesalers
    • Buy cheap 2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter from wholesalers

    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter

    Ask Lasest Price
    Brand Name : Revo
    Model Number : REVO II 3k-24
    Supply Ability : 100 Piece/Pieces per Week
    Price : $486.00/pieces 10-49 pieces
    • Product Details
    • Company Profile

    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter

    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter
    Product Description
    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter

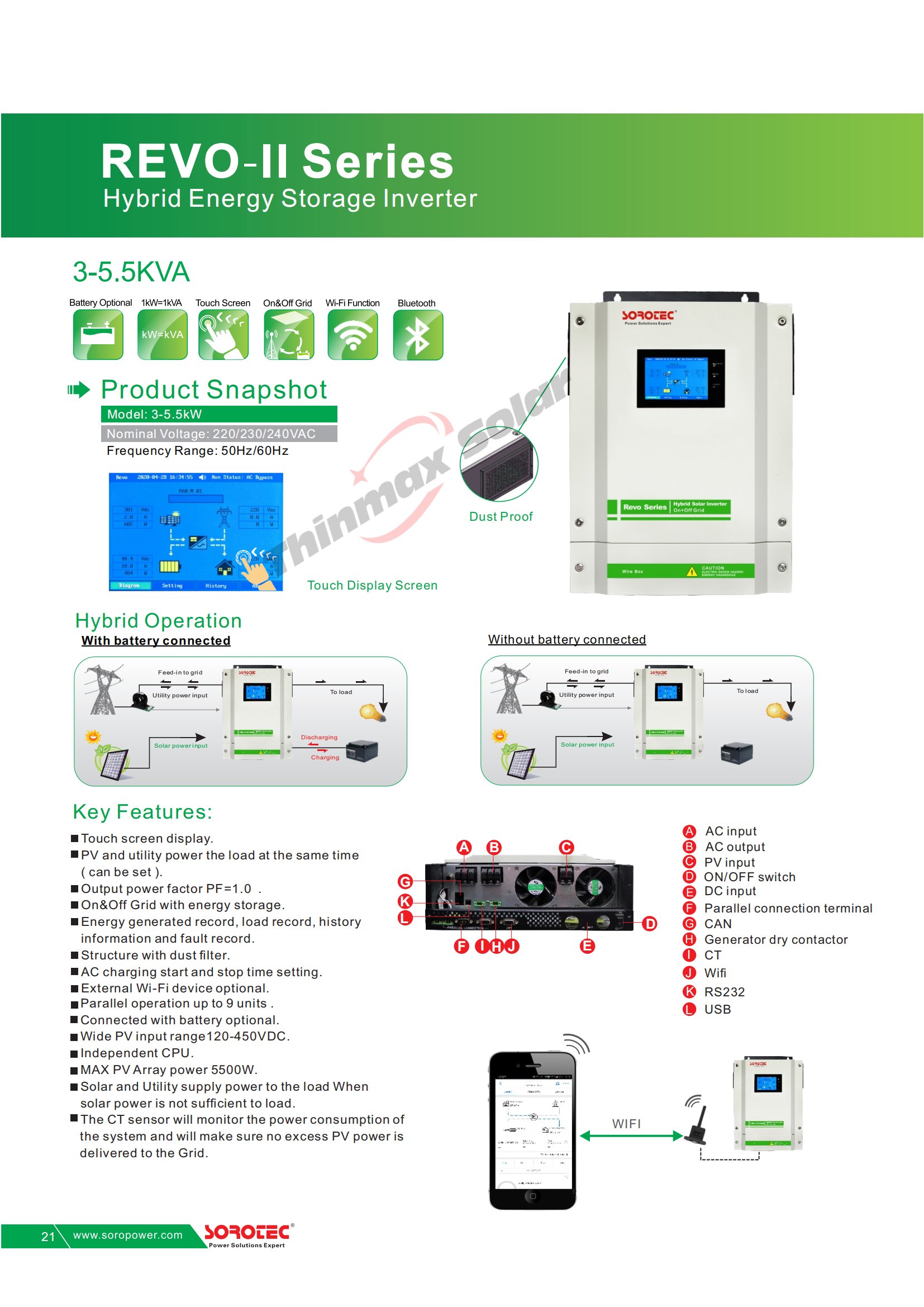

    REVO-II Series

    Wall Mounted Integrated Solar Power Inverter Technical Specification Built-in MPPT Solar Controller

    MODELREVO II 3k-24REVO II 3.2k-48REVO II 5.5k-48
    Max PV Array Power5500W
    Rated Output Power3000W3200W5500W
    MPPT Range @ Operating Voltage120-450VDC
    GRID-TIE OPERATION
    Nominal Output Voltage220/230/240VAC
    Output Voltage Range184-265VAC
    Nominal Output Current13.6A/13.0A/12.5A14.5A/13.9A/13.3A20.5A/19.6A/18.8A
    Efficiencyup to 93%
    OFF-GRID, HYBRID OPERATION
    Acceptable Input Voltage Range120-280VAC or 170-280 VAC
    Frequency Range50Hz/60Hz (Auto sensing)
    BATTERY MODE OUTPUT (AC)
    Nominal Output Voltage220/230/240VAC
    Output Wave FormPure sine wave
    BATTERY & CHARGER
    Nominal DC Voltage24VDC48VDC
    Maximum AC Charge Current60A
    Maximum Charge Current(AC+PV)90A
    Emergency output power
    Maximum output Power3000W3200W5500W
    Surge Power6000W6400W11000W
    Automatic Transfer Time<10ms
    GENERAL
    INTERFACE
    Parallel FunctionYes
    CommunicationUSB or RS232,WIFI, Generator dry-Contact
    ENVIRONMENT
    Humidity0-90% RH (No Condensing)
    Operating Temperature0 to 50°C
    Net Weight(KG)11.7511.9
    Gross Weight(KG)12.7513.1
    Dimension (W x D x H)mm345x476x133.2

    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter
    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter
    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter
    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter
    Packing & Delivery
    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
    Company Profile
    Why Choose Us
    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter

    Fuzhou Thinmax is a solar company located at the city Fuzhou which is the capital of Fujian province. We have about 50 office colleagues and 100 factory colleagues. With the professional colleagues and over 10 years experience of dealing with solar system, we are able to provide 100% satisfying service for customers. Not only for the ready products but also the customized products. In order to make the ship more fluently. We have cooperated with more than 20 shipping companies. After customers place the order. We will always choose the cheapest and reliable one to arrange the shipment. When customers have received the items. We have professional technician ready for customers if they have any problems.


    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter

    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter
    2023 HIGH QUALITY REVO II series 3.5KW/5.5KW on&Off Grid solar Inverter
    FAQ
    Q1: What is the delivery time?
    A1: It's according to the model. We will ship the items within 3 days if the items in stock.

    Q2: What ways of payment do you accept.
    A2: We can accept LC, Paypal, Credit card, etc.

    Q3: Will you provide shipping sevice?
    A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

    Q4: What if we have problems after sale?
    A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

    Q5: What is the minimum quantity?
    A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

    Q6: Are the inverters original?
    A6: Yes. Of course. If it's not. We will return all money back to you.
