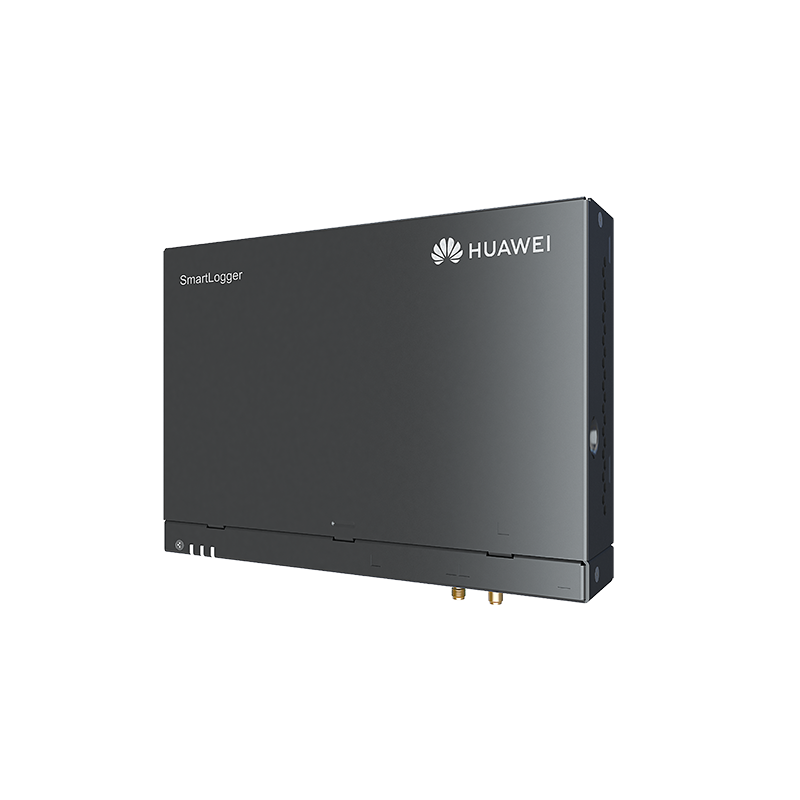

Easy To Install LED Indicator Wifi Module Smartlogger 3000a Acquisition System Huawei Smart Data Logger

Products Description

---

LED	LED Indicator x3 - RUN, ALM, 4G
WEB	Embedded Web
USB	USB 2.0x 1
APP	FusionSolar APP Communicated by WLAN for Commissioning
Operating Temperature Range	-40°C ~ 60°C (-40°F~ 140°F)
Storage Temperature	-40°C~ 70°C (-40°F~ 158°F)
Relative Humidity (Non-condensing)	5% ~ 95%
Max. Operating Altitude	4,000 m (13,123 ft.)

---

Technical Specification	SmartLogger3000A03EU	SmartLogger3000A01EU
Device Management
Max. Number of Connected Devices	80
Communication Interface
WAN	WAN x 1, 10 / 100 / 1000 Mbps
LAN	LAN x 1, 10 / 100 / 1000 Mbps
RS485	COM x 3, 1200 / 2400 / 4800 / 9600 / 19200 / 115200 bps, 1000 m
MBUS	MBUS x 1, 115.2 kbps, Compatible with PLC	No MBUS Communication Interface
2G / 3G / 4G	LTE(FDD):B1,B2,B3,B4,B5,B7,B8,B20 DC-HSPA+/HSPA+/HSPA/UMTS: 850/900/1900/2100 MHz GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Digital / Analog Input / Output	DI x 4, DO x 2, AI x 4
Active DO	12V, 100mA (connection with relay, sensor)
Communication Protocol
Ethernet	Modbus-TCP, IEC 60870-5-104
RS485	Modbus-RTU, IEC 60870-5-103 (standard), DL / T645
Interaction
LED	LED Indicator x 3 – RUN, ALM, 4G
WEB	Embedded Web
USB	USB 2.0 x 1
APP	Communication by WLAN for Commissioning
Environment
Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Storage Temperature	-40°C ~ 70°C (-40°F ~ 158°F)
Relative Humidity (Non-condensing)	5% ~ 95%
Max. Operating Altitude	4,000 m (13,123 ft.)
Electrical
AC Power Supply	100 V～240 V, 50 Hz / 60 Hz
DC Power Supply	12 V / 24 V
Power Consumption Typical	8 W, Max. 15 W
Mechanical
Dimensions (W x H x D)	225 x 160 x 44 mm (8.9 x 6.3 x 1.7 inch, without mounting ears and antenna)
Weight	2 kg (4.4 lb.)
Protection Degree	IP20
Installation Options	Wall Mounting, DIN Rail Mounting, Tabletop Mounting
